Quality control and testing

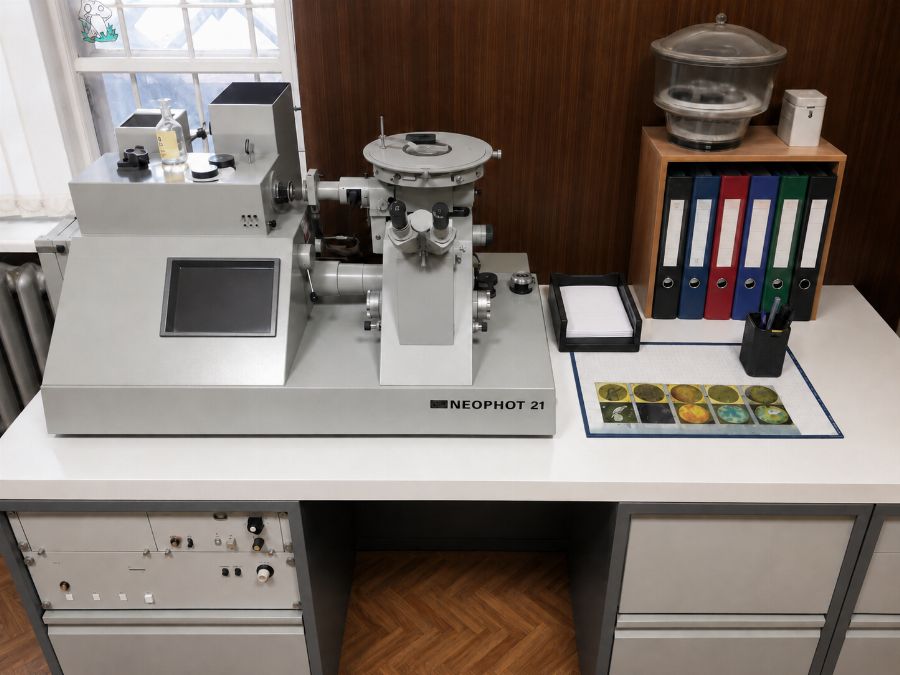

We support production with quality control from metal analysis to inspection of the finished casting. On site we perform express chemical analysis, metallography and main types of inspection; special testing is carried out with accredited specialists. Methods, acceptance criteria and report package are agreed according to the drawing, technical specification or RFQ.
Standards
Inspection methods and standards
| EN ISO 14284 | Steel and iron. Sampling and preparation of samples for chemical composition determination |
|---|---|
| Optical emission spectral analysis | Rapid chemical composition analysis of metal at the production site |
| EN ISO 15350 | Steel and iron. Determination of total carbon and sulphur content by infrared absorption after combustion in an induction furnace |
| EN 14726 | Aluminium and aluminium alloys. Determination of chemical composition by spark optical emission spectrometry |
| EN 15079 | Copper and copper alloys. Analysis by spark optical emission spectrometry |
| EN ISO 945-1 | Cast iron microstructure. Graphite classification by visual analysis |
|---|---|
| EN 10247 | Steels. Micrographic examination of non-metallic inclusions |
| EN ISO 9712 | Qualification and certification of non-destructive testing personnel |
|---|---|
| EN ISO 3452-1 | Penetrant testing. General principles |
| EN 1371-1 | Penetrant testing of sand, gravity die and low-pressure die castings |
| EN 12681-1 | Radiographic testing of castings. Film techniques |
| EN 12681-2 | Radiographic testing of castings. Digital detector techniques |
| EN 12680-1 | Ultrasonic testing of steel castings for general purposes |
| EN 12680-2 | Ultrasonic testing of steel castings for highly stressed components |
| EN 12680-3 | Ultrasonic testing of spheroidal graphite cast iron castings |
| EN ISO 6892-1 | Metallic materials. Tensile testing at room temperature |
|---|
